Microlit is ISO 9001 and ISO 13485 certified company and all products are CE marked. We manufacture complete range of Micropipettes, Bottle Top Dispensers, Electronic Pipette Filling Device and Pipette stands. With the years of innovation and constant improvements, Microlit has always stood by its vision of “Redifining liquid handling systems”.

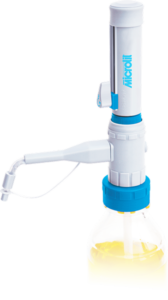

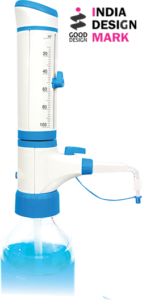

Ultimus Bottle Top Dispenser

Microlit has yet again answered the needs of the customers. With this Bottle Top Dispenser Microlit’s R&D has solved the biggest problem of the users : Re-filling the bottle and rinsing the instrument WITHOUT DISMOUNTING from the Bottle.



Microlit is proud to present most advanced, state of the art Dispenser in the world : Ultimus. With a world wide patented technology Microlit’s R&D has delivered a product that combines unique functionality, user-friendliness and performance. Ultimus offers its users 4 modes of dispensing in one Dispenser.



Six Unique Volume Ranges:

  • 0.25 – 2.5 ml
  • 0.5 – 5 ml
  • 1 – 10 ml
  • 2.5 – 30 ml
  • 5 – 60 ml
  • 10 – 100 ml



Fully Autoclavable at 121°C, 15psi. for 10 – 15 mins.

Ultimus offers four modes of operation:

Standard Dispensing

Valve 1 – Open

Valve 2 – Closed



In this mode the Dispenser dispenses the liquid normally into the receiver from the bottle it is mounted on.

Purging

Valve 1 – Closed

Valve 2 – Closed



In this mode the liquid is re-circulated into the same bottle on which the dispenser in mounted. This process removes the air from the dispenser without wasting any reagent.

Dilution / Rinsing / Second Liquid Dispensing

Valve 1 – Open

Valve 2 – Open



In this mode the liquid from a second source can be dispensed into the receiver. The second liquid can be distilled water, thus allowing the user to rinse the instrument without dismounting from the bottle of for dilution of the reagent in the receiver.

Bottle Refilling

Valve 1 – Closed

Valve 2 – Open



In this mode the liquid from a second source can be used to refill the bottle without dismounting the dispenser.

Extraction Systems

Safe extraction of fluids without evaporation of hazardous substances: the air valve function of S.C.A.T. SafetyCaps protects operators and environment during solvent extraction.

Waste Systems

Liquids in waste containers of laboratories are mostly toxic. The users often are not aware of the mixutres being generated by disposing different substances into the same container. The SafetyWasteCap system offers maximum protection and operability for safe disposal of fluid waste.

Safety Funnels

S.C.A.T. Safety Funnels only open when disposing fluids. The ball valve closes automatically, and harmful vapors can not escape from the waste container. The screw cap is freely turnable, for easy mounting and removal.

Level Control

Level monitoring can save lives. No more overflow or process interruptions caused by overfilled containers. S.C.A.T. level monitoring systems are especially approved for laboratory use and available in different versions

Built-in Solutions

Maximum operability, even when space is short – combined with the approved Safety Caps technology. Get all advantages of our liquid management system concentrated on your desktop, while all other components disappear under your desk!

Containers

Lab bottles, canisters and collecting trays for all purposes. Suitable for S.C.A.T. safety systems. Find your ideal solution for removal of liquids and collecting of liquid waste.

Accessories

We have developed a lot of products, which you need to be able to work quickly, safely and economically. Our fittings are very high quality and have been proven in practice.

Customized Production

No ready-made solution for your laboratory problem? Don’t worry: we can fix it. Constantly, we are developing special products to solve specific customer problems. Ask for your individual customized solution!
