Bigneat is firmly established as a world-class manufacturer and leading global provider of ductless fume cabinets, powder weighing satety cabinets. Clean air, hazard containment and safety systems to scientific laboratories and industry.



Applications for Bigneat products embrace operator and process/sample protection during laboratory procedures, batch and on-line production processes.



The core technologies of these and other cabinets requiring chemical fume and vapour removal is Chemcap™ carbon filtration, first used in ductless fume cabinets, but now used in all types of custom built enclosures and cleanrooms along with HEPA filtration for particulate removal.

Cabinet Filtration Technology

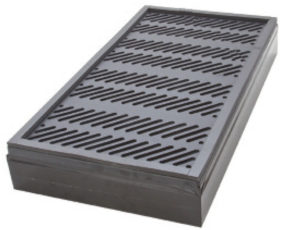

Carbon filtration for chemical fumes and vapours

Highly efficient Chemcap filters eliminate toxic substances and compounds within the recommended occupational exposure limit for pollutant gases having molecular weight equal to or greater than 30. Efficiency is 99.9% for the duration of the filter life and with no deterioration in filter performance.



Particulate filtration for aerosols and particulates

Pre-filters fulfil the need to arrest larger particles and are fitter to all Chemcap Clearview cabinets, HEPA filtration is fitted as an option when aerosols and small particles require removal. This can be upgraded to ULPA filtration when nanoparticle removal is required.

Key Development

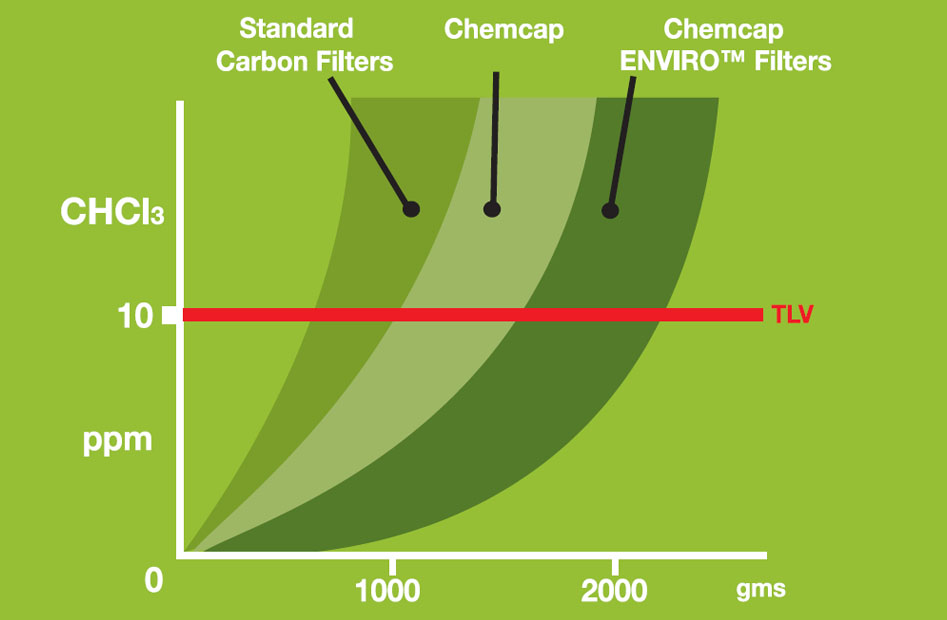

New Chemcap Clearview cabinet utilise filtration more effectively with an overall retention improvement of 20%

Improvements in the flow patterns in the design of Chemcap Clearview cabinets ensure that more of the carbon within the filtration bed is utilised and that retention capacity is maximised.

Choosing your optimised Chemcap filtration

Bignet offers a multi-purpose (universal) filter which should be selected when a fume cabinet is to be used for a variety of different procedures and handlings.



For best performance Bigneat’s chemist recommends choosing an optimised filter which will give the best retention and a long filter life.

Filter Selection

Filters OS and H+ are suitable for most organic vapours and acid handlings. However we recommend when : Composition of Vapours handled Filter Type 2-stage without particulates Filter Type 3-stage for chemicals with particulates (HEPA)
Organic compounds predominate ORGANIC VAPOURS
Secondary acids
Filter OS Filter OS HP
Acid compounds predominate ACID VAPOURS
secondary organic vapours
Filter H+ Filter H+ HP
Formaldehyde predominate FORMALDEHYDE Filter F Filter H+ HP
Ammonia predominates AMMONIA Filter AM Filter AM HP
Radioactive particles are present RADIOACTIVE IODINE Filter Ri HP
Mercury is present MERCURY Filter Hg HP
Uses are varied MULTIPURPOSE (Universal) Filter MP Filter MP HP

Filters OS and H+ are suitable for most organic vapours and acid handlings. However we recommend when :

  1. Recommendation
  2. Composition of Vapours handled
  3. Filter Type 2-stage without particulates
  4. Filter Type 3-stage for chemicals with particulates (HEPA)



1. Organic compounds predominate

2. ORGANIC VAPOURS (Secondary acids

3. Filter OS

4. Filter OS HP

1. Organic compounds predominate

2. ORGANIC VAPOURS (Secondary acids)

3. Filter OS

4. Filter OS HP

1. Acid compounds predominate

2. ACID VAPOURS (secondary organic vapours)

3. Filter H+

4. Filter H+ HP

1. Formaldehyde predominate

2. FORMALDEHYDE

3. Filter F

4. Filter H+ HP

1. Ammonia predominates

2. AMMONIA

3. Filter AM

4. Filter AM HP

1. Radioactive particles are present

2. RADIOACTIVE IODINE

3. –

4. Filter Ri HP

1. Mercury is present

2. MERCURY

3. –

4. Filter Hg HP

1. Uses are varied

2. MULTIPURPOSE (Universal)

3. Filter MP

4. Filter MP HP

Filtration used in Chemcap Clearview cabinets

Pre-filteration: eliminates particles at 5.0 microns or larger to an efficiency of 92% as defined in BS EN ISO 779.

Carbon Filtration: filtration efficiency of 99.9% meets BS 7989:2001 Standard.

Optional Particulate Filtration

HEPA filtration: (H14 Standard) eliminates particles 0.3 microns or larger to an efficiency of 99.995%

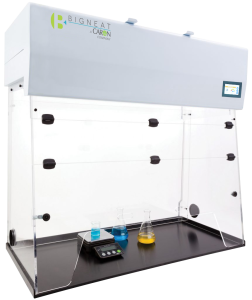

Chemcap Clearview Ductless Fume Cabinets

A range of six widths and an educational version.

When you want a ductless fume cabinet or hood to contain and remove hazardous fumes, vapours, gases and/or particulates in your laboratory turn to Chemcap Clearview.

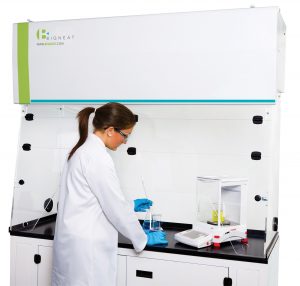

Chemcap Pro2 Ductless Fume Cabinets

A back-up filter is incorporated into filter housing to provide extra protection.

Pro2 ductless fume hoods include double Chemcap carbon and/or HEPA particulate filtration. A range of three standard cabinet sizes with touch button controls and audible low airflow alarm. The work surface is black which highlights spillages. This cabinet has a trapezium front access as standard with double hinged flaps for easy access to cabinet interior. Two service ports with covers are supplied in the side panels.

Ventilated Chemical Storage Shelving | Carbon Filtered

The effective way to eliminate airborne risks and to purify laboratory air.

Evaporation from drips and open containers contributes considerably to poor quality air within the laboratory. The Bigneat range of ventilated chemical storage cupboards remove vapours, purify the laboratory air and enhance the long-term health of laboratory personnel.

Chemcap chemical storage cupboards and shelving systems are ideal for a laboratory requiring a low cost ventilated storage system that does not need ducting or any associated building works.



Also available for ducted installation.

Bigneat chemical storage cupboards can be supplied as a ducted installation without a filtration system.

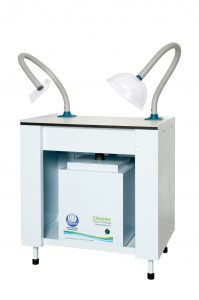

Fume Extraction and LEV Dust

Flexible or jointed-arm local extraction. The effective way to eliminate airborne hazards.

Cleantec for Fume extraction and LEV dust is adaptable and may be used as a free standing system, on a mobile or static workbench, with a single flexible or jointed arm, installed under-bench with multiple arms or connected direct into process equipment. With a manual fan speed control it is ideal for either light duties in laboratories, education, or for heavier duties requiring the full power of the fan.



Cleantec LEV is designed to solve your fume, dust and odour problems at the press of a button. Efficient filtration within a powerful extraction system removes hazardous material from your process direct from where the extraction is required.

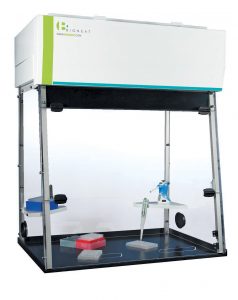

UV PCR Workstation

UV is effectively utilised in both the Bigneat UV Sterilisation Cabinet and the Bigneat UV PCR Workstation.

For PCR procedures that need protection from contamination; UV sterilisation of the working environment, with additional downflow sterile air protecting against subsequent contamination.

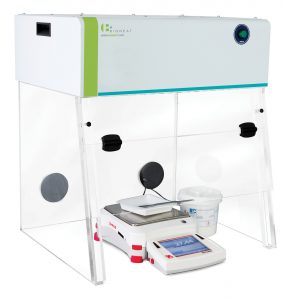

Weighing Station | F3-XIT

These cabinets have a very small footprint and excellent all-round vision. Cabinets have hinged access flap (F3-XIT-D) or corner tear drops (F3-XIT-S).

Powder cabinets (otherwise called stations, workstations or enclosures) utilise HEPA filtration technology and protect the operator from particles whilst weighing and handling powers.

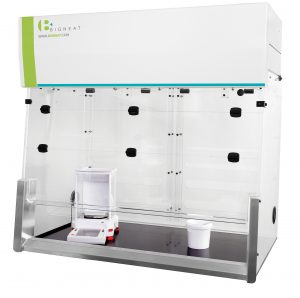

Powder Weighing Stations | Excel Plus

Excel Plus powder weighing stations incorporate aerofoil technology and graded rear back baffle to ensure reduced turbulence and precise control of horizontal air flow across the entire width of the working access.



Acrylic construction and angled clear front windows enable excellent vision of enclosed manipulations and comfort during use. Black base tray is manufactured from HPL.

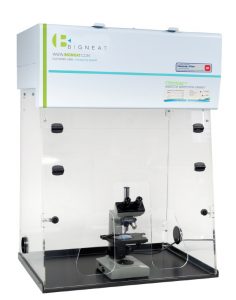

Asbestos Inspection Cabinet

Asbestos Inspection Cabinet is a HEPA filtered ductless safety cabinet which provides operator protection from fibres and articles.

Bigneat’s BA cabinet has excellent access through tear drops in the front panel to the cabinet interior for manipulation of the contained microscope and sample slides.



BA cabinets are available in two cabinet widths; 800 and 1000mm.

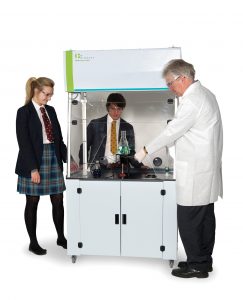

Education Fume Cabinet – BE EDU

EDU Chemcap fume cabinets (ductless, recirculatory filtration) are ideal for use in education, for example for teaching practical chemistry when teacher and students need an excellent view into the cabinet to observe experiments. Furthermore, the cabinet is supplied on castors giving the flexibility to be moved around.

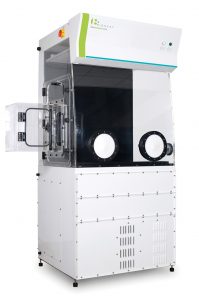

Controlled Environment Enclosures

No need for a clean room – space saving and compact enclosure with a small footprint.

High-purity clean air enclosure with controlled humidity or temperature and/or controlled atmosphere (HX/Hypoxic hood) provides the user with the highest quality precision environment at all times irrespective of fluctuations in the surrounding laboratory environment.



BCEE uses a sealed recirculatory air system to provide downflow, sterile air to the work surface ensuring sample/process protection.



Controlled Humidity:<1%-85%
Controlled Temperature: 4°C-40°C
Clean Air: ISO Class 5 to EN14644-1
Controlled Atmosphere: Aerobic, hypoxic or anaerobic conditions

Chemcap Clearview Ductless Fume Cabinets

A range of six widths and an educational version.

When you want a ductless fume cabinet or hood to contain and remove hazardous fumes, vapours, gases and/or particulates in your laboratory turn to Chemcap Clearview.

844 Maxi chemical storage cabinet

The effective way to eliminate airborne risks and to purify laboratory air.

Evaporation from drips and open containers contributes considerably to poor quality air within the laboratory. The Bigneat range of ventilated chemical storage cupboards remove vapours, purify the laboratory air and enhance the long-term health of laboratory personnel.



Also available for ducted installation.

Bigneat chemical storage cupboards can be supplied as a ducted installation without a filtration system.

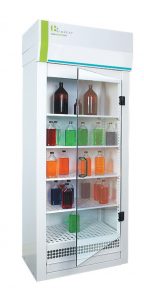

834 Chemical Storage Cabinet

The effective way to eliminate airborne risks and to purify laboratory air.

Evaporation from drips and open containers contributes considerably to poor quality air within the laboratory. The Bigneat range of ventilated chemical storage cupboards remove vapours, purify the laboratory air and enhance the long-term health of laboratory personnel.



Also available for ducted installation.

Bigneat chemical storage cupboards can be supplied as a ducted installation without a filtration system.

812 Shelf store

Protect your laboratory staff and improve the laboratory environment.

Evaporation from drips and open containers contributes considerably to poor quality air within the laboratory. The Bigneat range of ventilated chemical storage shelving systems remove vapours, purify the laboratory air and enhance the long-term health of laboratory personnel.

CS 812 is open style shelves designed to be situated close to where you are work – your chemicals will be within reach and convenient.

822 Shelf store

Protect your laboratory staff and improve the laboratory environment.

Evaporation from drips and open containers contributes considerably to poor quality air within the laboratory. The Bigneat range of ventilated chemical storage shelving systems remove vapours, purify the laboratory air and enhance the long-term health of laboratory personnel.

CS 822 is open style shelves designed to be situated close to where you are work – your chemicals will be within reach and convenient.

XIT & XIT Plus models
Small footprint

Suitable for weighing with an Analytical balance.

Powder Weighing Cabinet for operator protection from particles whilst weighing and handling powders. These cabinets offer excellent all-round vision. Cabinet has trapezium shaped front access (285mm height) with double hinged flap for easy access to cabinet interior and the base tray is included. Lighting from a fluorescent white light aids the internal brightness and comfort for the operator.



Cabinets are supplied complete with HEPA filtration (removes particles greater than 0.3 microns with an efficiency of 99.997%) and pre-filter (removes particles greater than 5 microns).

Excel Plus Safechange weighing workstation

Suitable for weighing with a Micro Balance to 5/6 decimal places, providing the greatest protection possible for the safety conscious laboratory.

Excel Plus Workstations are used in the laboratory for the most demanding powder handling applications, such as high accuracy weighing, processing of pellets, capsules and tablets and for dispensing of potentially toxic powdered compounds.

UV PCR Workstation

For PCR procedures that need protection from contamination; UV sterilisation of the working environment, with additional downflow sterile air protecting against subsequent contamination.

BCEE Controlled Environment Enclosures

Providing stable conditions for experimentation, testing and production.

No need for a clean room – space saving and compact system with a small footprint.



Controlled Humidity : <1%-85%
Controlled Temperature : 4°C-40°C
Clean Air : ISO Class 5 to EN14644-1
Controlled Atmosphere : Aerobic, hypoxic or anaerobic conditions

LA Range Custom Structures

Including Walk-In Systems. Bigneat’s design team is highly experienced and provides solutions for enclosing robotics systems from manufacturers of laboratory automation around the world. These systems provide operator, sample/process protection or both for floor mounted systems and include options and finishing to suit your robotics system and your particular unique contained process.

LABS Enclosure, Class II performance

Bio-safety for operator and contained laboratory automation in a range of enclosure sizes.

Bigneat’s LABS enclosure has been designed following years of practical experience and is an example of Bigneat’s innovation in bio-safety enclosure design & technology. We offer a range of features and options to assist the work-flow in the fast moving pharmaceutical, life sciences and drug development laboratory.



LABS enclosures provide downflow sterile air to the work surface ensuring protection of the contained system whilst providing operator protection.



This enclosure’s air flow system is 100% pass through.

Downflow Table

Downflow table draws dust (powders), smoke and fumes down past the worktop and away from the operator, the contaminants are filtered and retained by a highly efficient Chemcap™ carbon filter (removes chemical vapours and fumes) or a HEPA filter (removes particles).
